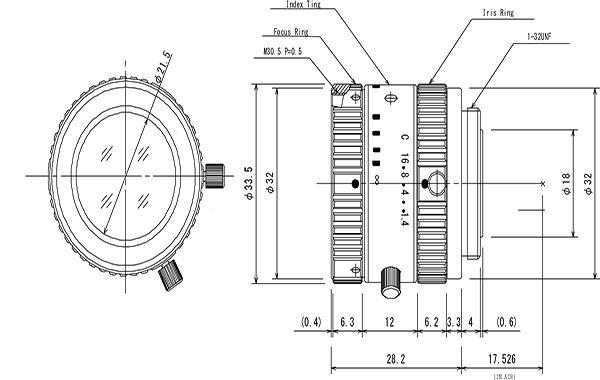

Dimensions
f=12mm F1.4
ｆor 2/3 type Megapixel Cameras
C-Mount
|
Model No. |
M1214-MP2 |
Effective Lens Aperture |
Front |
φ21.0mm |
|||
|
Focal Length |
12mm |
Rear |
φ13.0mm |
||||
|
Max. Aperture Ratio |
1:1.4 |
Distortion |
2/3type |
-0.1%(y=5.5) |
|||
|
Max. Image Format |
8.8mm x 6.6mm(φ11mm) |
1/2type |
-0.35%(y=4.0) |
||||
|
Operation Range |
Iris |
F1.4 ‐ F16C |
Back Focal Length |
13.1mm |
|||
|
Focus |
0.15m ‐ Inf. |
Flange Back Length |
17.526mm |
||||
|
Control |
Iris |
Manual |
Mount |
C-Mount |
|||
|
Focus |
Manual |
Filter Size |
M30.5 P=0.5mm |
||||
|
Object Dimension at M.O.D |
2/3 type |
12.1cm x 9.0cm |
Dimensions |
φ33.5mm x 28.2mm |
|||
|
1/2 type |
8.8cm x 6.5cm |
Weight |
61.9g |
||||
|
Angle of View
|
D |
2/3 type |
49.2° |
1/2 type |
37.0° |
|
|
|
H |
40.4° |
30.0° |
|
||||
|
V |
30.8° |
22.7° |
|
||||
|
Operating Temperature |
-10℃ ‐ +50℃ |
|
|
||||
M.O.D : Minimum Object Distance
