f=8mm F1.4
ｆor 2/3 type Megapixel Cameras
C-Mount
|
Model No. |
M0814-MP2 |
Effective Lens Aperture |
Front |
φ21.5mm |
|||
|
Focal Length |
8mm |
Rear |
φ12.0mm |
||||
|
Max. Aperture Ratio |
1:1.4 |
Distotion |
2/3type |
-0.1%(y=5.5) |
|||
|
Max. Image Format |
8.8mm x 6.6mm(φ11mm) |
1/2type |
-1.1%(y=4.0) |
||||
|
Operation Range |
Iris |
F1.4 ‐ F16C |
Back Focal Length |
13.1mm |
|||
|
Focus |
0.1m ‐ Inf. |
Flange Back Length |
17.526mm |
||||
|
Control |
Iris |
Manual |
Mount |
C-Mount |
|||
|
Focus |
Manual |
Filter Size |
M30.5 P=0.5mm |
||||
|
Object Dimension at M.O.D |
2/3 type |
12.1cm x 9.0cm |

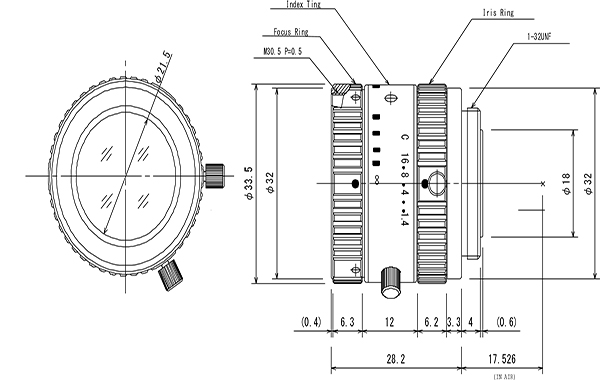

Dimensions |
φ33.5mm x 28.2mm |
|||
|
1/2 type |
8.7cm x 6.5cm |
Weight |
62.6g |
||||
|
Angle of View
|
D |
2/3 type |
67.1° |
1/2 type |
51.9° |
|
|
|
H |
56.3° |
42.5° |
|
||||
|
V |
43.7° |
32.4° |
|
||||
|
Operating Temperature |
-10℃ ‐ +50℃ |
|
|||||
M.O.D : Minimum Object Distance
